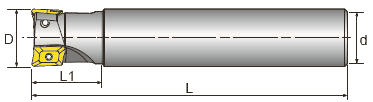

Размеры | Комплектующие | ||||||||
Model No |
D |
d |
L |
L1 | L2 |
INO | Вставка | Винт | Рывок |
EM90AP10-D20 |
20 |
20 |
120 |
25 | 35 |
2R6T |
AP..1035 | CS25 |
T-8 |
EM90AP10-D25 |
25 |
25 |
130 |
35 | 45 |
2R8T | |||
EM90AP10-D32 | 32 |
32 |
140 |
44 | 55 |
3R15T | |||
EM90AP10-D32-200 |
32 |
32 |
200 |
44 | 55 |
3R15T | |||
EM90AP10-D40 |
40 |
32 |
150 |
53 | 65 |
3R21T | |||
EM90AP16-D40 |
40 |
42 | 150 |
49 | 65 |
3R12T |
AP..1605 | CS35 | T-15 |
EM90AP16-D40-32 |
40 |
32 |
150 |
49 | 65 |
3R12T | |||
EM90AP16-D50 |
50 |
42 |
165 |
61 | 75 |
3R15T |
