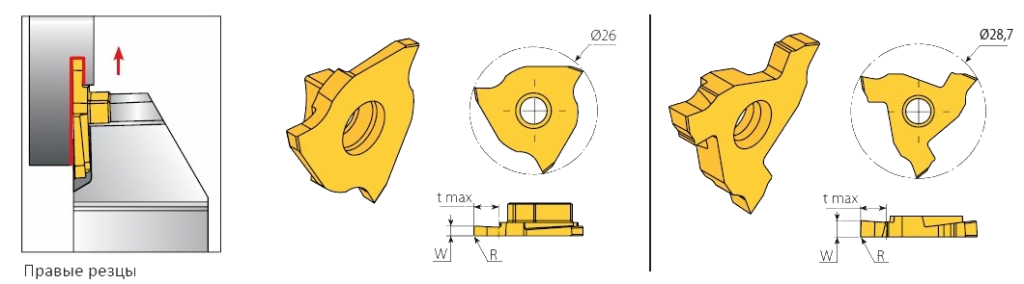

| Типоразмер пластина | Обозначение | Размеры, мм | Корпус резца | ||
| IC |
Правый / левый
(RH / LH)
| W±0,02 |
R±0,03
|
t max
| Винт |
|
26 |
GVN26R/LS0.57-00 |
0,57 |
0,00 |
1,0 | GVNE...-26, GVNE90...-26 |
|
GVN26R/LS0.79-00 |
0,79 |
0,00 |
1,6 | ||
|
GVN26R/LS0.79-0.2 |
0,79 |
0,20 |
1,6 | ||
|
GVN26R/LS0.87-00 |
0,87 |
0,00 |
2,0 | ||
|
GVN26R/LS0.97-00 |
0,97 |
0,00 |
2,0 | ||
|
GVN26R/LS1.0-0.1 |
1,00 |
0,10 |
2,0 | ||
|
GVN26R/LS1.07-00 |
1,07 |
0,00 |
2,0 | ||
|
GVN26R/LS1.2-00 |
1,20 |
0,00 |
2,0 | ||
|
GVN26R/LS1.24-00 |
1,24 |
0,00 |
2,0 | ||
|
GVN26R/LS1.4-00 |
1,40 |
0,00 |
2,0 | ||
|
GVN26R/LS1.44-00 |
1,44 |
0,00 |
2,0 | ||
|
GVN26R/LS1.5-0.1 |
1,50 |
0,10 |
3,0 | ||
|
GVN26R/LS1.5-0.2 |
1,50 |
0,20 |
5,0 | ||
|
GVN26R/LS1.58-0.2 |
1,58 |
0,20 |
3,0 | ||
|
GVN26R/LS1.6-00 |
1,60 |
0,00 |
3,0 | ||
|
GVN26R/LS1.7-0.1 |
1,70 |
0,10 |
3,0 | ||
|
GVN26R/LS1.74-00 |
1,74 |
0,00 |
3,0 | ||
|
GVN26R/LS2.0-00 |
2,00 |
0,00 |
3,0 | ||
|
GVN26R/LS2.0-0.1 |
2,00 |
0,10 |
3,0 | ||
|
GVN26R/LS2.0-0.2 |
2,00 |
0,20 |
5,0 | ||
|
GVN26R/LS2.22-0.15 |
2,22 |
0,15 |
5,0 | ||
|
GVN26R/LS2.39-0.15 |
2,39 |
0,15 |
5,0 | ||
|
GVN26R/LS2.47-0.2 |
2,47 |
0,20 |
5,0 | ||
|
29 |
GVN29R/LS2.38-0.1 |
2,38 |
0,10 |
6,5 | GVNE...-29-1, GVNE90...-29-1,GVNI...-29 |
|
GVN29R/LS2.5-0.1 |
2,50 |
0,10 |
6,5 | ||
|
GVN29R/LS2.7-0.1 |
2,70 |
0,10 |
6,5 | ||
|
GVN29R/LS3.0-0.2 |
3,00 |
0,20 |
6,5 | ||
|
GVN29R/LS3.17-0.2 |
3,17 |
0,20 |
6,5 | ||
|
GVN29R/LS3.5-0.2 |
3,50 |
0,20 |
6,5 | GVNE...-29-2, GVNE90...-29-2,GVNI...-29 | |
|
GVN29R/LS4.0-0.4 |
4,00 |
0,40 |
6,5 | ||
|
GVN29R/LS5.0-0.4 |
5,00 |
0,40 |
6,5 | ||
